4产品中心
电动碳钢搅拌桶
电动碳钢搅拌桶



电动碳钢搅拌桶

  • 详情说明


容量重量
(KG)
外尺寸(mm)内尺寸(mm)桶身厚度
(mm)
桶盖厚度
(mm)
外径外桶高内径内桶高
1L3.5KG108mm140mm102mm130mm3mm12mm
2L4.5KG133mm180mm|127mm170mm3mm12mm
3L6KG133mm260mm127mm|245mm3mm12mm
4L7KG168mm250mm160mm235mm3.5mm12mm
5L8KG168mm300mm160mm285mm3.5mm14mm
8L16KG219mm250mm210mm235mm4.5mm14mm
10L17KG219mm300mm210mm290mm4.5mm14mm
15L19KG219mm450mm210mm435mm4.5mm14mm
20L30KG273mm400mm261mm385mm5mm14mm
25L33KG273mm490mm261mm470mm6mm16mm
30L43KG325mm420mm313mm400mm6mm16mm
40L46KG325mm540mm313mm520mm6mm16mm
50L56KG376mm600mm490mm490mm6mm16mm
60L60KG376mm600mm365mm580mm6mm16mm
80L
法兰式
56KG376mm600mm365mm580mm
120L
法兰式
60KG376mm600mm365mm580mm6mm16mm

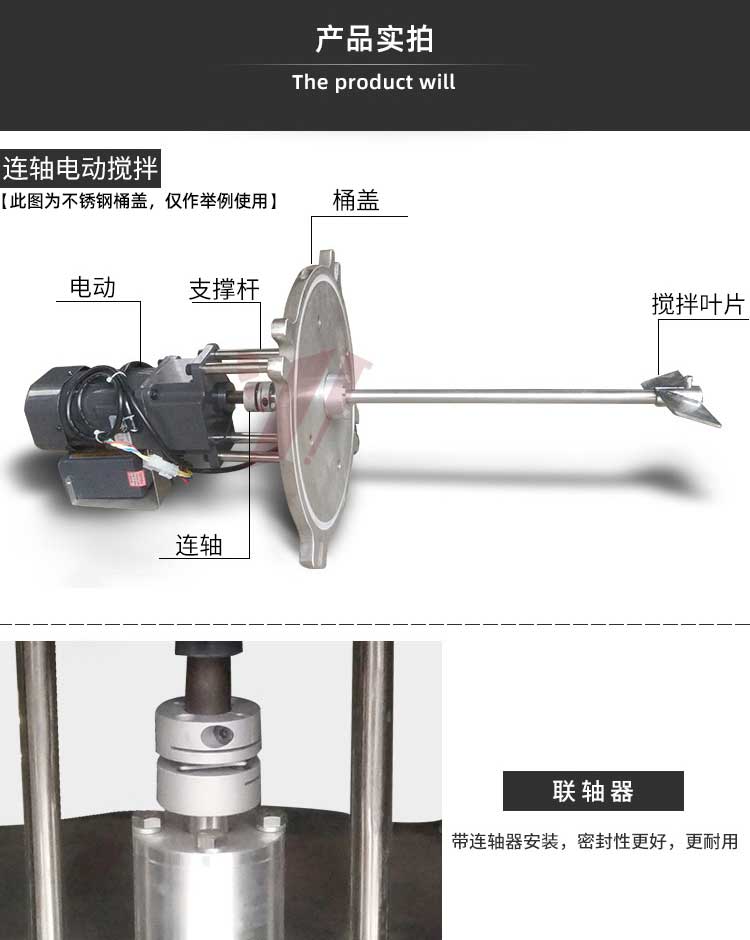

​搅拌机参数​:

电动马达专用于处理有沉淀的料液输送。
电机分为调速电机和不可调速电机.
调速电机:90转/分钟一-1350转/分钟;
不可调速电机:54转/分钟;

40w60w90w120w180w
转速r/min减速比最大
容许
转矩
转速r/min减速比最大
容许
转矩
转速r/min减速比最大
容许
转矩
转速r/min减速比最大
容许
转矩
转速r/min减速比最大
容许
转矩
5OHz60Hz50Hz60Hz50Hz60Hz5OHz60Hz50Hz60Hz
50060037.4500600311500600316.450060021.8500600327.2
4165003.68.64165003.613.24165003.619.74165003.626.24165003.633.2
300360511.8300360517.8300360527.3300360536,4300360546
2002407.517.82002407.526,52002407.5412002402.554.742002407.570.4
166200921.6166200g31.8166200g4916620065.6166200g92.6
1501801021.81501801033.815018010551501801065.61501801092.6
12014412.529.412014412.54812014412.56812014412.582.112014412.5116
1001201535.51001201555.41001201573.91001201598.610012015139.5
831001837.2831001865831001888.783100181188310018167
7590204075902072.5759020110759020118759020185.5
6072255460722587.3607225123607225149607225232.6
50603064.85060301055o6030148506030196506030278.6
41503677.8415036147415036177415036200415036334
30365098.5303650147303650200303650200303650400
25306098.5253060147253060200253060200253060400
20247598,.5202475147202475200202475200202475400
16209098.516209014716209020016209o200162090400
151810098.51518100147151810020015181002001518100400
12.51512098.512.51512014712.51512020012.51512020012.515120400
101215098.51012150147101215020010121502001012150400
8.31018098.58.3101Bo1478.3101802008.3101802008.3101B040o
67.225098.567.225014767.22502007.59200400
5630098.55630014756300200
33.650098.533.650098.533.6500200
